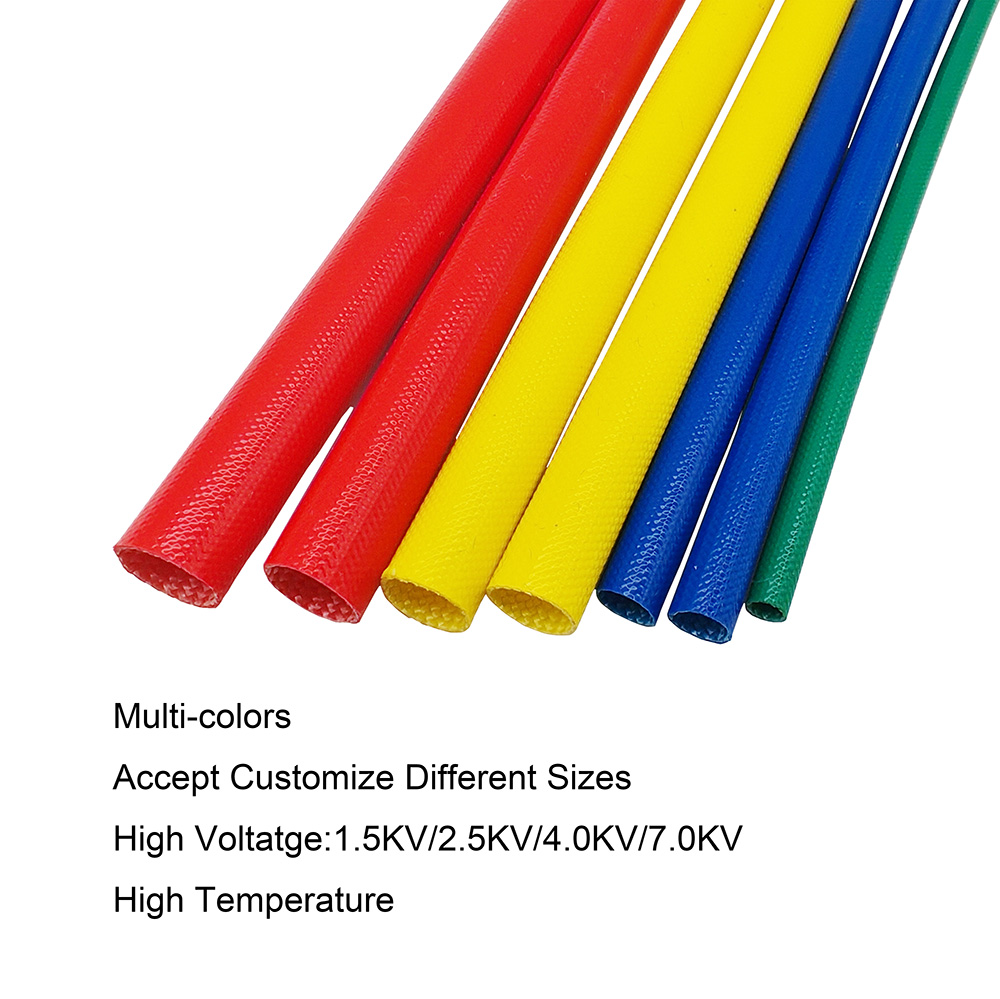

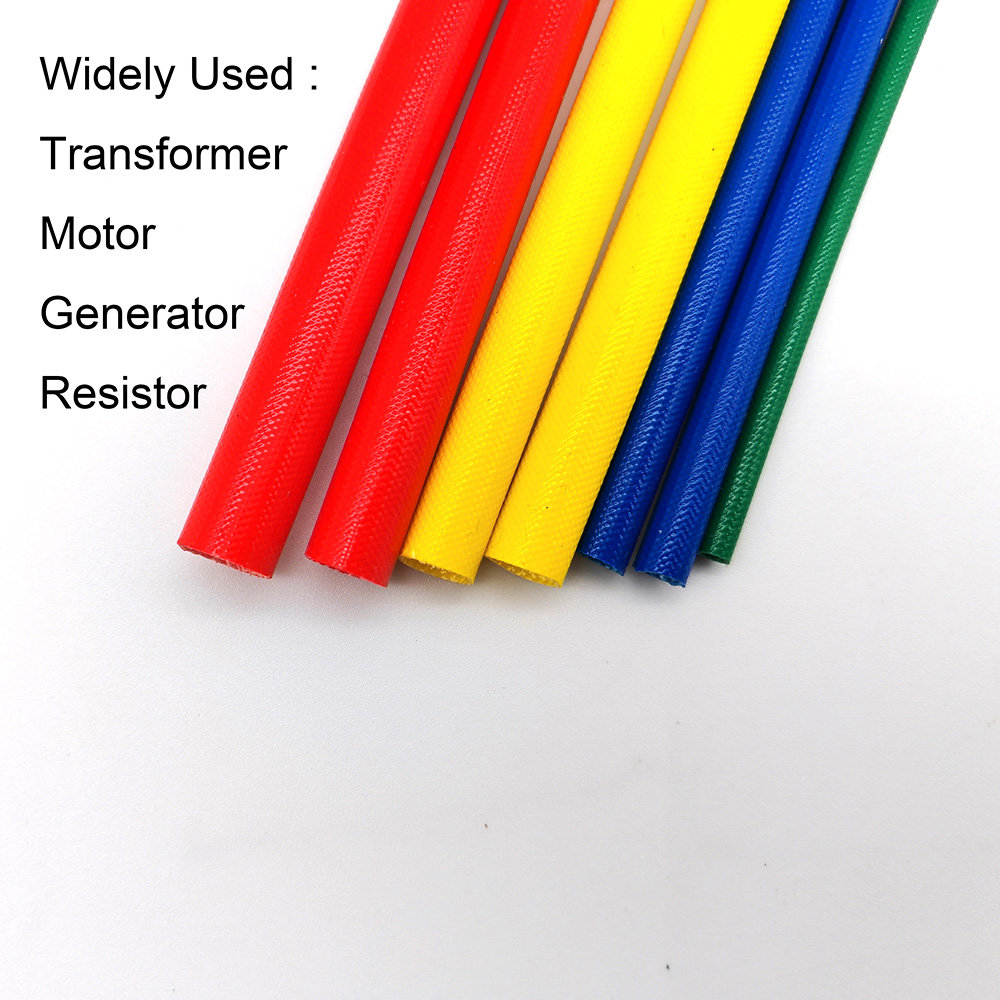

หมายเลขรุ่น: GSKJ-SRS
| ดาวน์โหลด | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Specification Sheet | ||||
| Part No. | Specification （mm） |
Inner Diameter（mm） | Voltage | |
| 1500V | 2500V | |||
| GSKJ-SGS-008 | Φ0.8 | 0.8+0.2 | 0.28±0.05 | 0.35±0.05 |
| GSKJ-SGS-010 | Φ1.0 | 1.0+0.2 | 0.28±0.05 | 0.35±0.05 |
| GSKJ-SGS-015 | Φ1.5 | 1.5+0.2 | 0.28±0.05 | 0.35±0.05 |
| GSKJ-SGS-020 | Φ2.0 | 2.0+0.2 | 0.28±0.05 | 0.35±0.05 |
| GSKJ-SGS-025 | Φ2.5 | 2.5+0.2 | 0.30±0.05 | 0.35±0.05 |
| GSKJ-SGS-030 | Φ3.0 | 3.0+0.2 | 0.30±0.05 | 0.35±0.05 |
| GSKJ-SGS-035 | Φ3.5 | 3.5+0.3 | 0.38±0.05 | 0.42±0.05 |
| GSKJ-SGS-040 | Φ4.0 | 4.0+0.3 | 0.38±0.05 | 0.42±0.05 |
| GSKJ-SGS-045 | Φ4.5 | 4.5+0.3 | 0.38±0.05 | 0.42±0.05 |
| GSKJ-SGS-050 | Φ5.0 | 5.0+0.3 | 0.38±0.05 | 0.42±0.05 |
| GSKJ-SGS-060 | Φ6.0 | 6.0+0.5 | 0.43±0.05 | 0.45±0.05 |
| GSKJ-SGS-070 | Φ7.0 | 7.0+0.5 | 0.43±0.05 | 0.45±0.05 |
| GSKJ-SGS-075 | Φ7.5 | 7.5+0.5 | 0.43±0.05 | 0.45±0.05 |
| GSKJ-SGS-080 | Φ8.0 | 8.0+0.5 | 0.43±0.05 | 0.45±0.05 |
| GSKJ-SGS-090 | Φ9.0 | 9.0+0.5 | 0.43±0.05 | 0.45±0.05 |
| GSKJ-SGS-100 | Φ10 | 10+0.7 | 0.47±0.05 | 0.53±0.05 |
| GSKJ-SGS-110 | Φ11 | 10+0.7 | 0.47±0.05 | 0.53±0.05 |
| GSKJ-SGS-120 | Φ12 | 12+0.7 | 0.47±0.05 | 0.53±0.05 |
